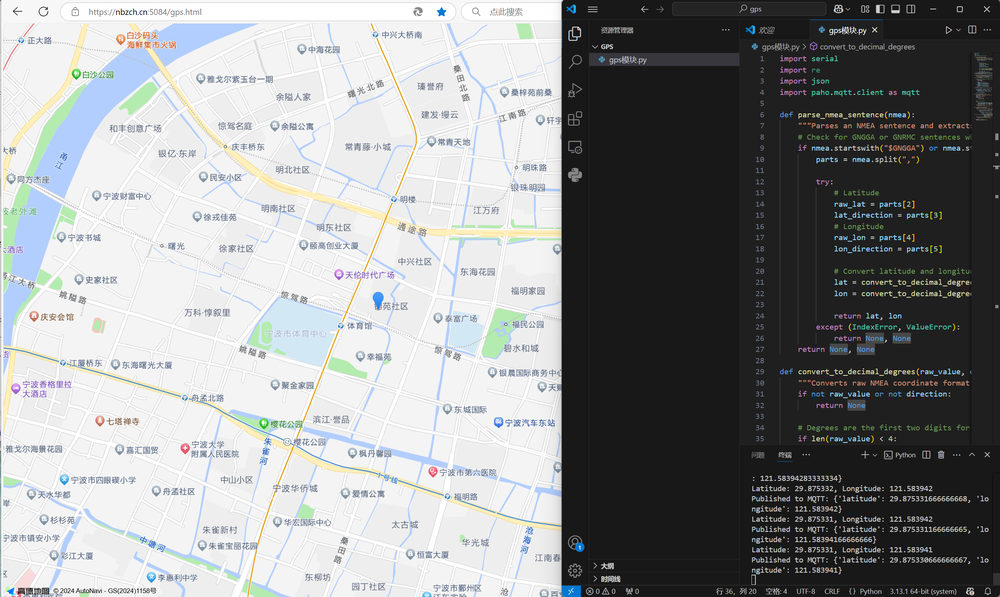

GPS模组E108-GN03D使用python定位演示。

E108-GN03+Series_UserManual_CN_V1.2.pdf

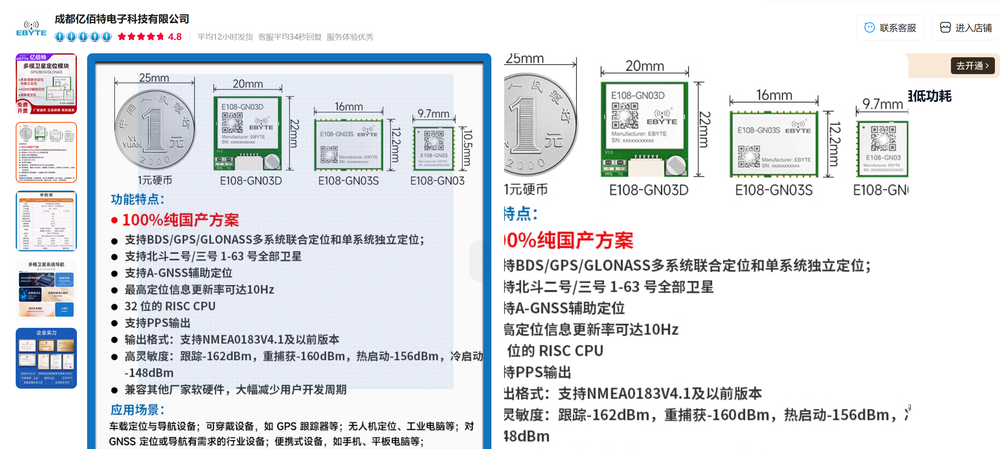

E108-GN03D GNSS多模卫星定位模块

芯片方案：AT6558R

通信接口：UART

工作电压：2.7-3.6V

通信协议：NMEA0183 V4.1及以前版本

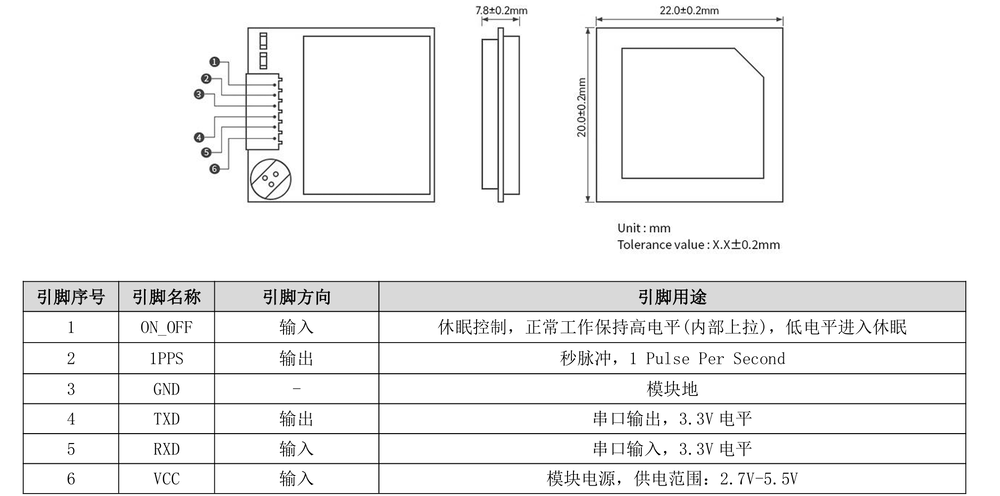

产品尺寸：20.022.07.8mm

产品简介：E108-GN03D是一款高性能、高集成度、低功耗、低成本的多模卫星定位导航模块，基于AT6558R方案，可用于车载导航、智能穿戴、无人机等GNSS定位导航的应用中，支持BDS/GPS/GLONASS，体积小、功耗低，而且提供了和其他模块厂商兼容的软、硬件接口，大幅减少了用户的开发周期。

import serial
import re
import json
import paho.mqtt.client as mqtt

def parse_nmea_sentence(nmea):
    """Parses an NMEA sentence and extracts latitude and longitude."""
    # Check for GNGGA or GNRMC sentences which contain latitude and longitude
    if nmea.startswith("$GNGGA") or nmea.startswith("$GNRMC"):
        parts = nmea.split(",")

        try:
            # Latitude
            raw_lat = parts[2]
            lat_direction = parts[3]
            # Longitude
            raw_lon = parts[4]
            lon_direction = parts[5]

            # Convert latitude and longitude to decimal degrees
            lat = convert_to_decimal_degrees(raw_lat, lat_direction)
            lon = convert_to_decimal_degrees(raw_lon, lon_direction)

            return lat, lon
        except (IndexError, ValueError):
            return None, None
    return None, None

def convert_to_decimal_degrees(raw_value, direction):
    """Converts raw NMEA coordinate format to decimal degrees."""
    if not raw_value or not direction:
        return None

    # Degrees are the first two digits for latitude, first three for longitude
    if len(raw_value) < 4:
        return None

    if direction in ['N', 'S']:
        degrees = int(raw_value[:2])
        minutes = float(raw_value[2:])
    elif direction in ['E', 'W']:
        degrees = int(raw_value[:3])
        minutes = float(raw_value[3:])
    else:
        return None

    decimal_degrees = degrees + minutes / 60
    if direction in ['S', 'W']:
        decimal_degrees = -decimal_degrees

    return decimal_degrees

def publish_to_mqtt(lat, lon):
    """Publishes latitude and longitude to an MQTT server."""
    mqtt_broker = "nbzch.cn"
    topic = "gps/location"
    payload = {
        "latitude": lat,
        "longitude": lon
    }

    client = mqtt.Client()
    try:
        client.connect(mqtt_broker, 1883, 60)
        client.publish(topic, json.dumps(payload))
        print(f"Published to MQTT: {payload}")
    except Exception as e:
        print(f"Error publishing to MQTT: {e}")

def read_nmea_from_serial(port):
    """Reads and processes NMEA sentences from a serial port."""
    try:
        with serial.Serial(port, baudrate=9600, timeout=1) as ser:
            print(f"Listening on {port}...")
            while True:
                line = ser.readline().decode('ascii', errors='ignore').strip()
                if line:
                    lat, lon = parse_nmea_sentence(line)
                    if lat is not None and lon is not None:
                        print(f"Latitude: {lat:.6f}, Longitude: {lon:.6f}")
                        publish_to_mqtt(lat, lon)
    except serial.SerialException as e:
        print(f"Error accessing serial port: {e}")

if __name__ == "__main__":
    read_nmea_from_serial("COM4")
